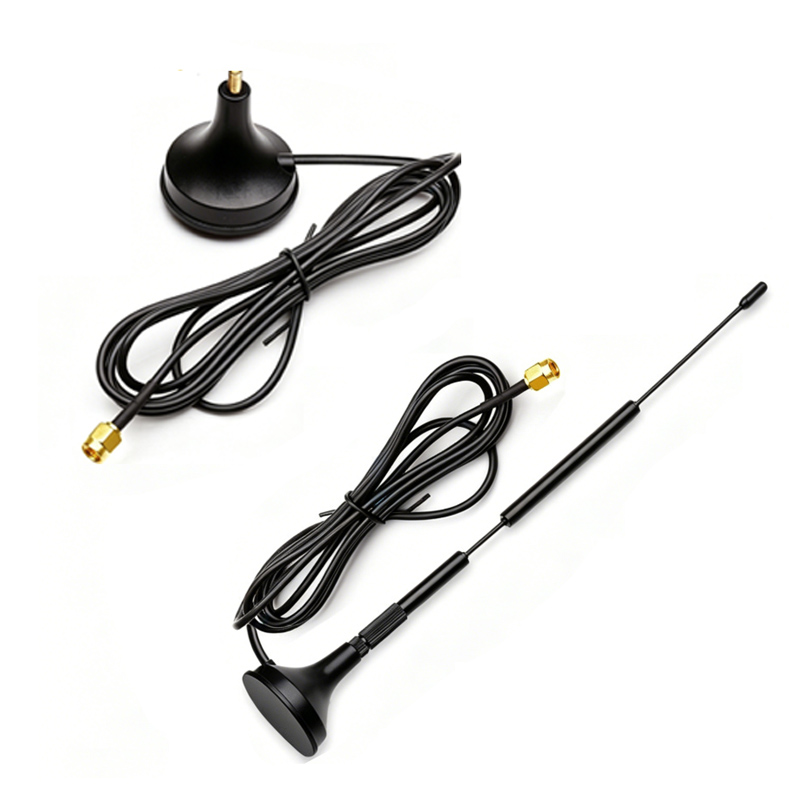

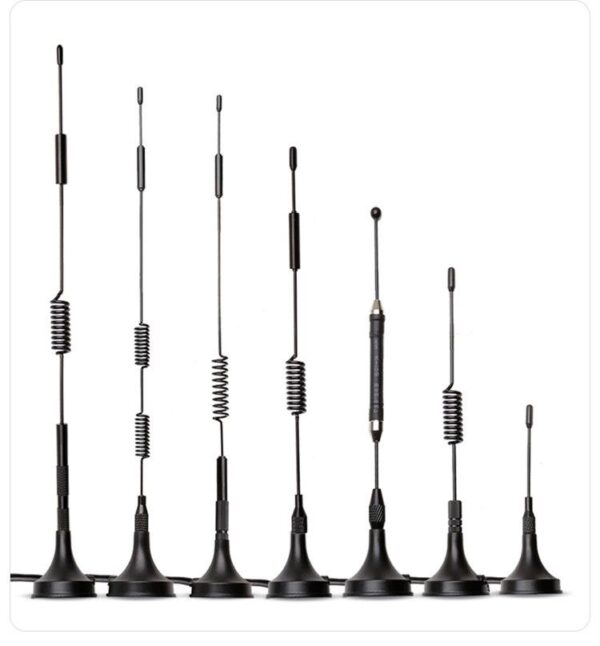

4G/LTE suction cup antenna
4G/LTE suction cup antenna
• The installation is super convenient, with magnetic attachment, allowing for easy relocation at any time
• The wire can be extended to place the antenna in a better signal position (with the equipment placed inside the cabinet and the antenna placed outside)
• Seamless disassembly and assembly, no need for screw holes, suitable for temporary installation, vehicle-mounted applications, and industrial equipment
Specifications
| Parameter | Value |
| Model Number | BJL-X4G05-225-1000/1500/2000/3000 |

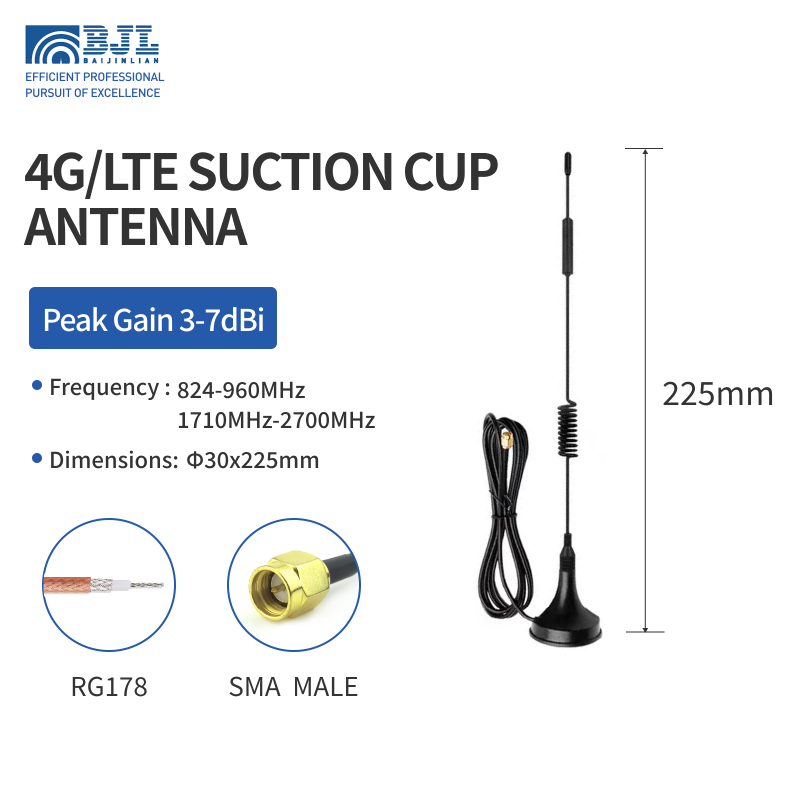

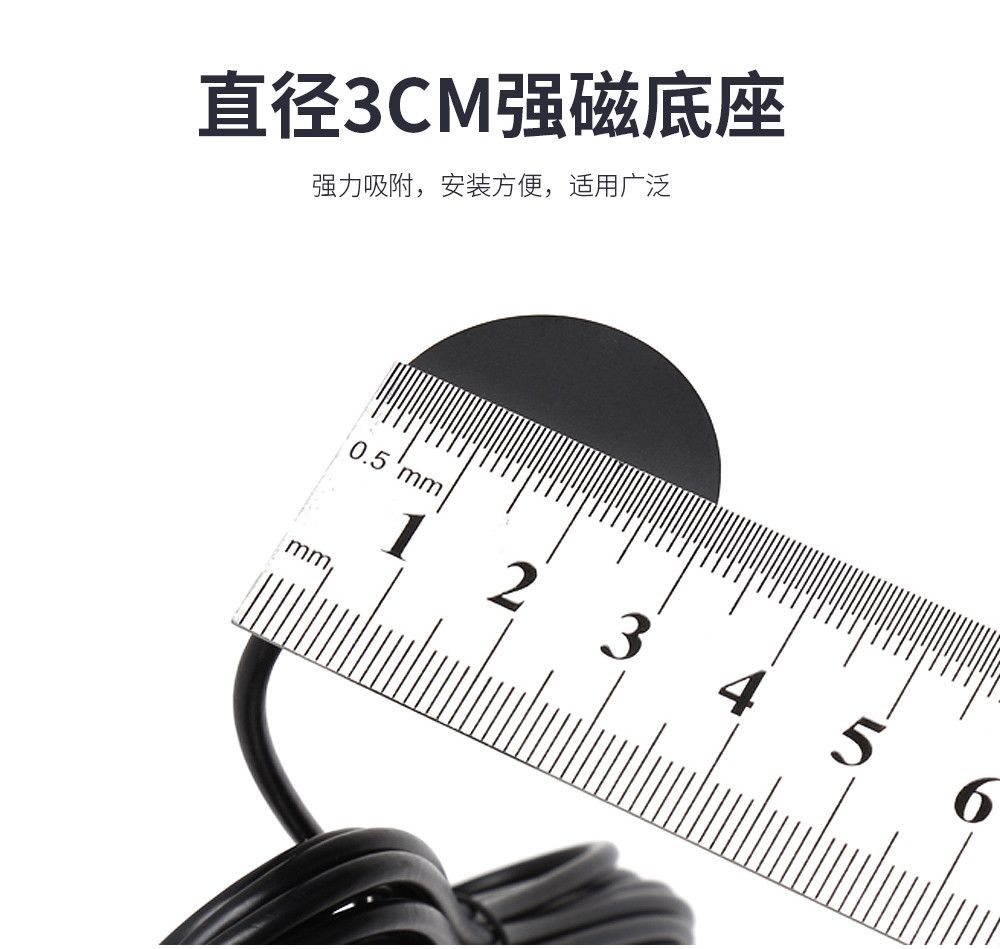

| Dimensions | Φ30x225mm |
| Frequency (MHz) | 824-960/1710-2700MHz |
| Bandwidth | 136/990MHz |
| Peak Gain (dBi) | 3-7dBi |
| VSWR | ≤2.0 |
| Radioactive | Omni-Direction |
| Polarization Type | Vertical |
| Input maximum power | 10W |
| Impedance | 50Ω |
| Connector | SMA Male/IPEX一代（Customizable） |
| Wire rod | RG174/RG178（Customizable） |
| Standard Cable Length | 1m/1.5m/2m/3m（Customizable） |
| Product material | Carbon steel、ABS |
| Operating temperature | -40°C to+85°C |
