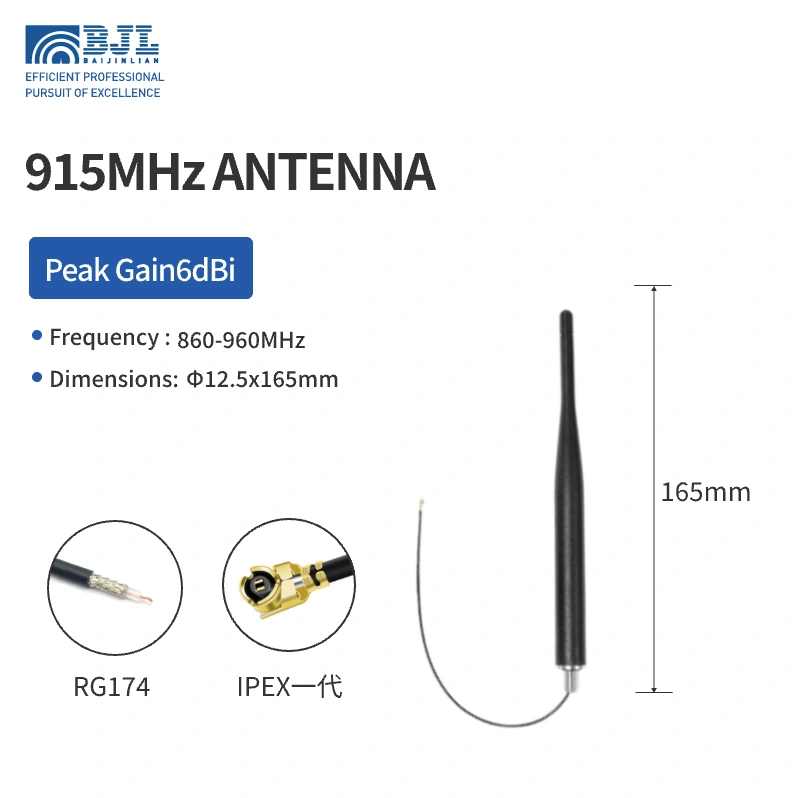

915MHz antenna (φ12.5 × 165mm)
915MHz antenna (φ12.5 × 165mm)
The outlet-type glue stick antenna comes with an IPEX cable, eliminating the need for an on-board RF connector. It offers flexible installation and stable omnidirectional signal, making it ideal for IoT industrial wireless terminals.
Specifications
| Parameter | Value |
| Model Number | BJL-JZ915-SK165 |
| Dimensions | Φ12.5x165mm |
| Frequency (MHz) | 860~940MHz |
| Peak Gain (dBi) | 3dBi |
| VSWR | ≤2.0 |
| Radioactive | Omni-Direction |
| Polarization Type | Vertical |
| Input maximum power | 10W |
| Impedance | 50Ω |

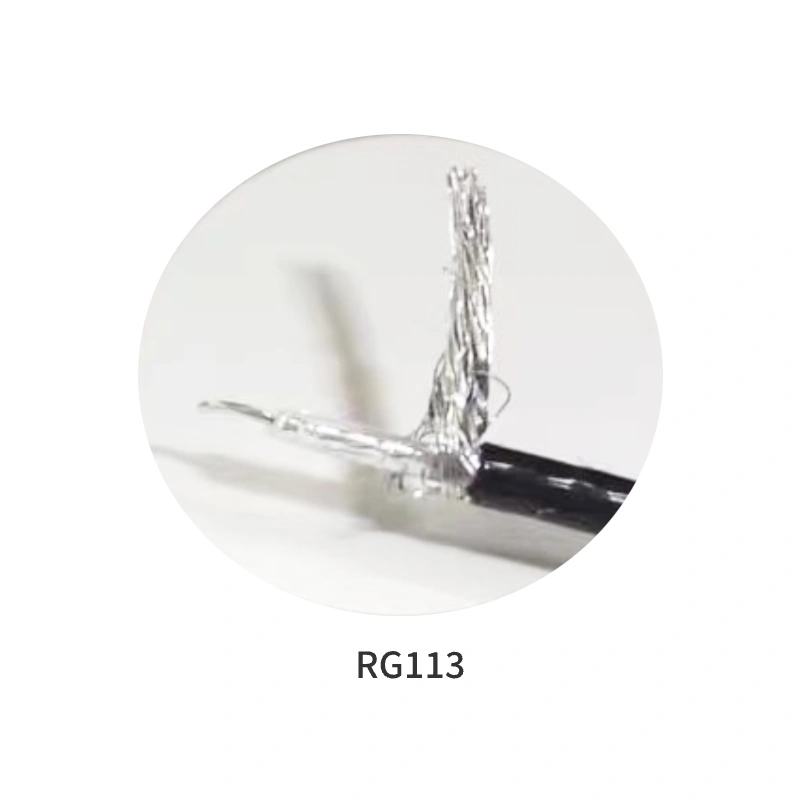

| Connector | RG113 (Customizable) |
| Wire rod | IPEX (Customizable) |
| Standard Cable Length | 3m (Customizable) |
| Product material | ABS |
| Operating temperature | -40°C to+85°C |
